Mixed Signal Digital Storage Oscilloscope Hameg HMO3524

The Hameg HMO3524 Mixed Signal Digital Storage Oscilloscope provides 350MHz bandwith, 4GSa/s sampling rate and a storage depth of 2MB per channel. It has 4 analog and 16 digital inputs each of which with a minimum sensitivity of 1mV/div and an input impedance of 1MΩ.

Specifications:

  • Sensitivity: 1mV/div 5V/div (1-2-5 increments)
  • Input Coupling: AC, DC & Ground
  • Input Impdance: 1 MΩ, 13pF (50Ω switchable)
  • Maximum Input: 200V (DC + peak AC), 5V (50Ω)
  • Waveform Signal Process: +, -, 1/x, ABS, MUL, DIV, SW, POS, NEG, INV
  • Bandwidth Limit: 350 MHz [5mV … 5V]/div; 100 MH [1mV, 2mV]/div
  • Trigger Sources: CH1, CH2, Line, EXT (CH3, CH4)
  • Horizontal Range: 1 ns/iv 20 ms/div; ROLL: 50ms/div ~ 50s/div
  • Voltage Measurement: V pp V amp V avg V rms Vhi Vlo V max V min, Rise Preshoot/Overshoot, Fall Preeshoot/Overshoot
  • Time Measurement: Frequency, Period, Rise Time, Fall Time •Cursors Measurement: Voltage difference between cursors (ΔV) Time difference between cursors (ΔT)

Spectrum Analyser Hameg HMS3010

This 3GHz spectrum analyser has a frequency range from 100kHz to 3GHz and a resolution of 1Hz. Sweep times can be adjusted between 20ms and 1000s.

Specifications:

  • Resolution: 1Hz
  • Sweep Time (Span < 1Hz): 20mx → 1000s, min. 20ms/600MHz
  • Display Range: 80 db, 40 db, 20 db, 10 db, linear
  • Amplitude Measurement Range: -114 dbM → +20 dbM
  • Maximum Voltage at input: 80 Vdc
  • Input impedance: 50Ω
  • Number of markers: 8
  • Marker functions: peak, next peak, min, center, reference level, all on peak
  • Connection: N socket (50Ω)

Spectrum Analyser Aaronia Spectran NF-5035

  • Channel Count 1
  • Frequency Range DC – 20MHz

Arbitrary Function Generator Hameg HMF2550

The Hameg HMF2550 Arbitrary Function Generator can produce sine, square, pulse, triangle, ramp and arbitrary incl. standard curves. With a frequency range from 10µHz to 50MHz and <8ns rise and fall times it can be used in a variety of setups.

Specifications:

  • Output Voltage: 50MV à 10Vss
  • Input Impedance: 5kΩ
  • Output Impedance: 50Ω
  • Frequency Range Sinewave: 10µHZ à 50MHz
  • Frequency Range Square Pulse and Arbitrary Waveform: 10µHZ à 25MHz
  • Frequency Range Triangle/Saw: 10µHZ à 10MHz
  • Rise and Fall time: <8ns

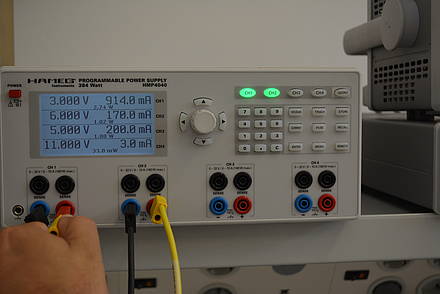

Arbitrary Laboratory Power Supply Hameg HMF4040

The Hameg HMF4040 Arbitrary Laboratory Power Supply features 4 0-32V,0-10A outputs with a maximum of 384W. Minimal voltage resolution is 1mV and the residual ripple is smaller than 150µVrms. Each channel can be programmed with an overvoltage/overcurrent protection.

Specifications:

  • Number of Outputs: 4
  • Output Connector: 4 mm Safety Socket (banana plug)
  • Output Current: 0 à 10A
  • Output Voltage: 0 à 32V
  • Voltage Accuracy: <0.05% + 5 MV (typ. ± 2MV)
  • Current Accuracy: <0.1% + 5 MA (typ. ± 1MA at I<500 mA)

Programmable Counter Hameg HM8123

The Hameg HM8123 3Ghz Programmable Counter has two BNC and one SMA inputs with a total frequency range from 0Hz to 3GHz. Input impedace is 1MΩ for the BNC input and 50Ω for the SMA input.

Specifications:

  • Number of Outputs: 4
  • Output Connector: 4 mm Safety Socket (banana plug)
  • Output Current: 0 à 10A •Output Voltage: 0 à 32V
  • Voltage Accuracy: <0.05% + 5 MV (typ. ± 2MV)
  • Current Accuracy: <0.1% + 5 MA (typ. ± 1MA at I<500 mA)

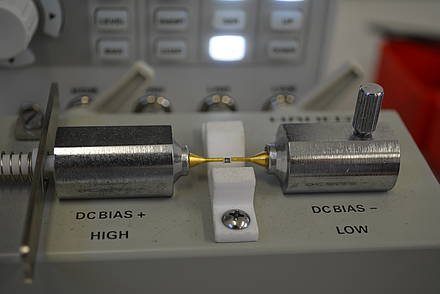

LCR Bridge Hameg HM8118

  • Channel Count 1
  • Measureands R, L, C

Precision Multimeter Tektronix DMM4050

  • Digit Count 6,5
  • Measureands U, I, R

3D CNC Drilling/Milling machine Kosy 3

  • Working Range X=250mm Y=150mm Z=6 mm
  • Accuracy 0,010 mm
